Fan rods and remote controls
Accessories for your ceiling fans
1 – Mounting rods
We have developed specific mounting rod models (Anyplenum) to save installers time when installing ceiling air circulators EXHALE, SAMARAT & IZYFAN.
Indeed, installers are regularly faced with suspended ceilings with a plenum of varying depth in order to reach the concrete ceiling.
With our Anyplenum extendable rods, installers save valuable time and improve the rigidity of the air circulator installation by using one extendable rod instead of 4 threaded rods.
Several mounting rod models are available:
- 20 to 30 cm extendable and NON-tiltable rod
- 30 to 40 cm extendable and NON-tiltable rod
- 40 to 60 cm extendable and NON-tiltable rod
- 60 to 90 cm extendable and NON-tiltable rod
- 90 to 110 cm extendable and NON-tiltable rod
- 30 to 40 cm extendable and tiltable rod (to compensate for sloped / vaulted ceilings)

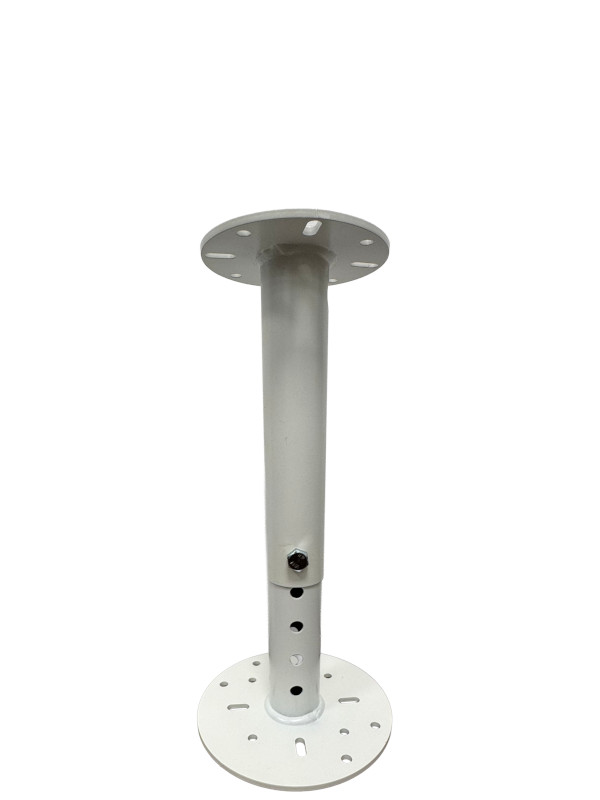

Tige 20 à 30 cm, extensible – non inclinable

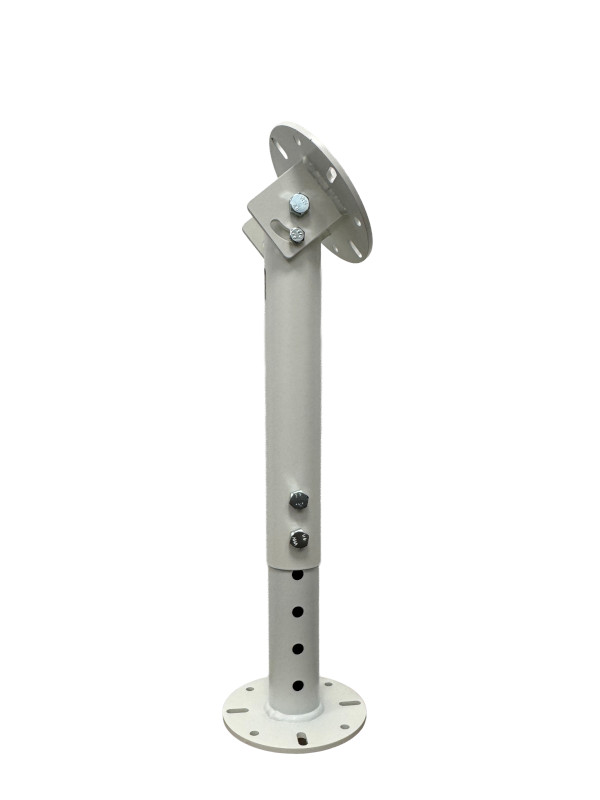

Downrod 30 to 40 cm, extendable – tiltable

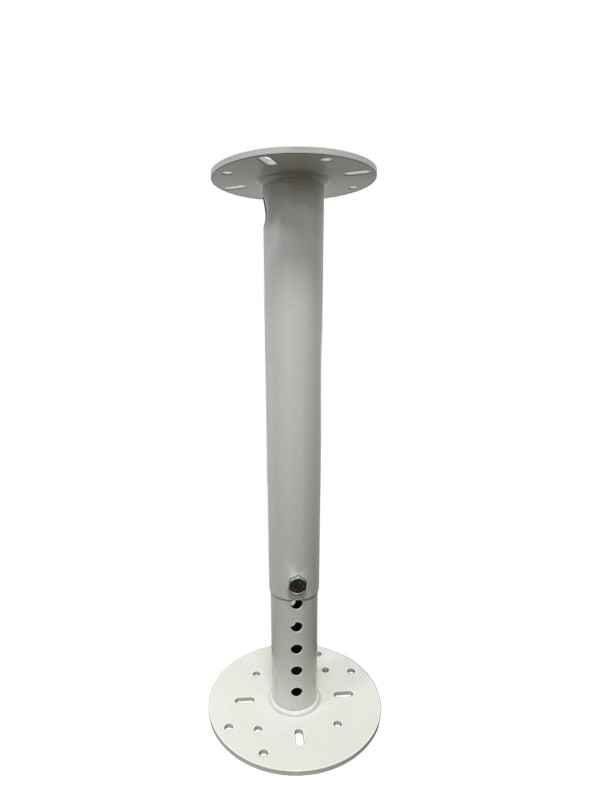

Downrod 30 to 40 cm, extendable – non-tiltable

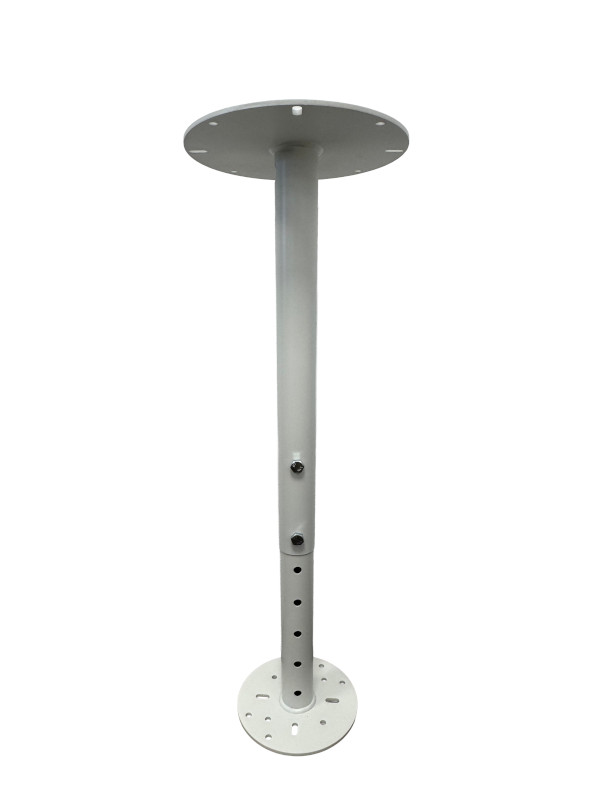

Downrod 40 to 60 cm, extendable – non-tiltable

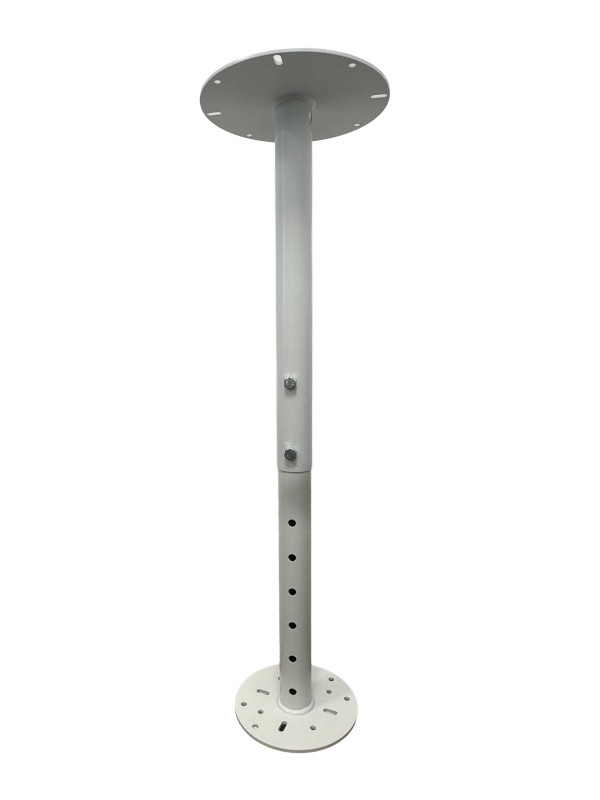

Downrod 60 to 90 cm, extendable – non-tiltable

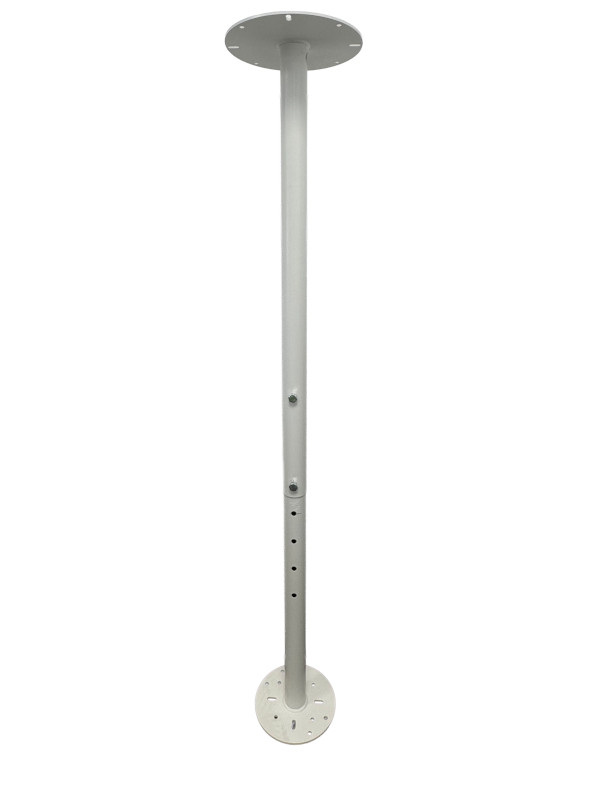

Downrod 90 to 110 cm, extendable – non-tiltable
2 – Wall-mounted remote controls for fans (battery-operated or 220V / wired)
To control several ceiling fans (up to 6 fans on one remote control) simultaneously in the same room, we offer several models of wall-mounted remote controls.
Battery-powered wall-mounted remote control (radio frequency)
Wall-mounted remote control (radio frequency) with 220V power supply (wired)
Whatever their power supply (battery or 220V), these remote controls operate using radio frequency.
These remote controls can be fitted with a surface-mounted frame (optional) to make them easier to install.
Please note:
- One remote control can control up to 6 fans covering a maximum surface area of 50 m². For larger surfaces or a greater number of fans, the use of a second remote control is recommended.
- To synchronise the remote controls successfully, the room must be equipped with a circuit breaker, a fuse, a switch or a junction box dedicated to all the ceiling fans in the room.
- Make sure that all fans rotate in the same direction (summer comfort = anti-clockwise / winter comfort = clockwise).
Radio frequency remote control (battery-powered or 220V) with programmer
Projecting frame
